All New Viper V2 Wide Spool Winch

You are gonna want to pick up the all new VIPER V2 wide spool winch!

The VIPER V2 has 60′ of USA-made AMSTEEL-BLUE cable that is custom wound for you on every winch, wireless remote with massive 150′ range, laser-etched logos, true backlit dashboard switch, and ridiculously beefy look.

Viper V2 Wide Spool UTV Winch – a NEW GENERATION OF VIPER!

The VIPER V2 winch is the next evolution in the long-trusted VIPER line of ATV/UTV winches by MotoAlliance. V2 boasting a sleek design to match next-gen machines, sealed with an IP67 waterproof rating, and constructed with durable corrosion-resistant aluminum, V2 winches will handle whatever your outdoor lifestyle throws at them. Plus, every V2 comes with a wireless remote switch to make winching operations safer and more convenient.

Riders who love aesthetics: the V2 has been designed to impress. Every component, from the laser-marked winch body to the blacked-out stainless-steel hook to the “stealth” wiring, aligns with the high design standard of VIPER Winches of 2022. In addition, all V2s are hand-wound with your color choice of USA-made AmSteel®-Blue synthetic rope.

The VIPER V2 is a great choice for discerning riders who love to push their machines to the limits.

Features:

• • IP67 Waterproof Rating
• • Wireless Remote System with unique frequency
• • Flush Mount Dash Switch
• • Planetary metal gear train and permanent magnet motor
• • Automatic brake
• • Limited Lifetime Warranty (winch) / Rope (1 year)

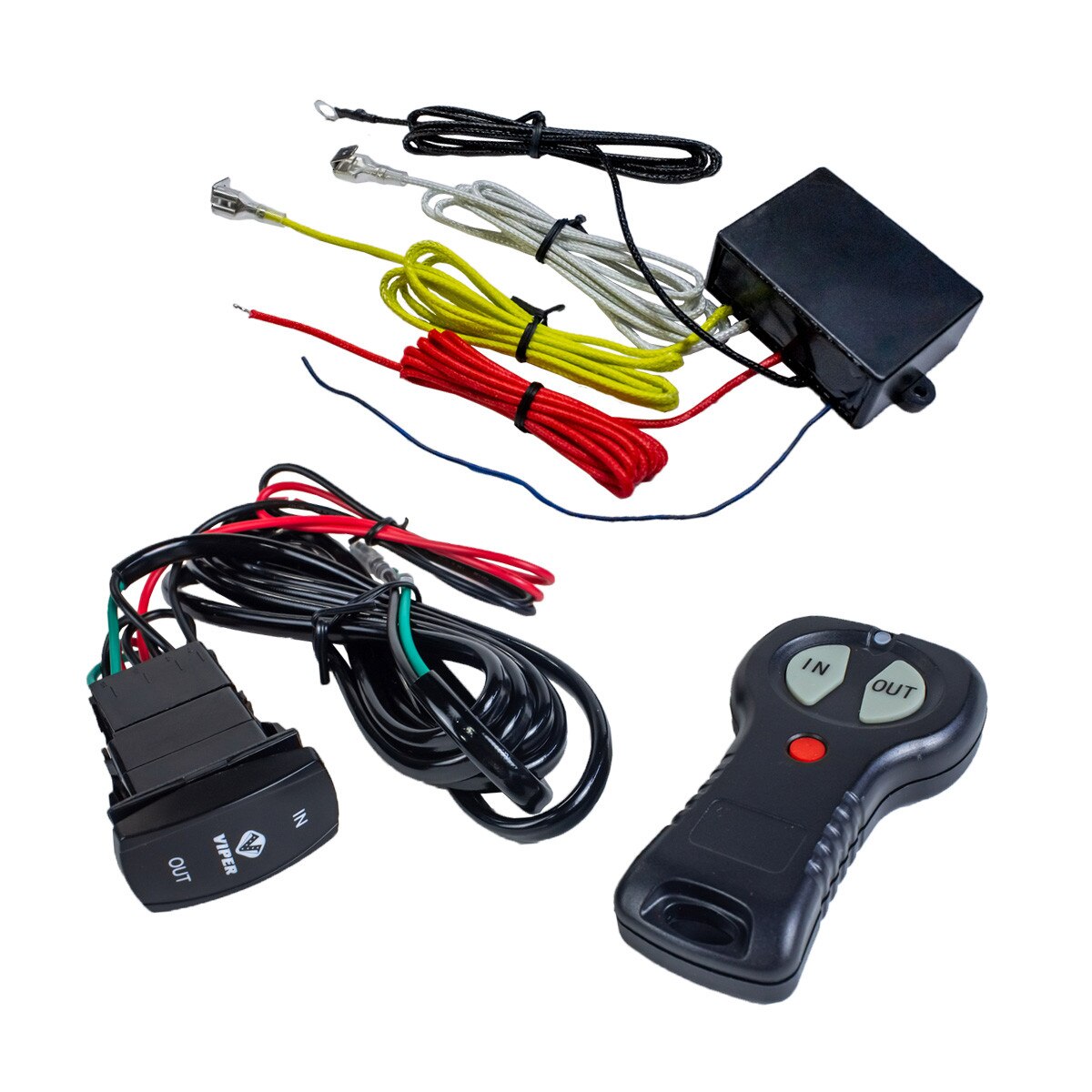

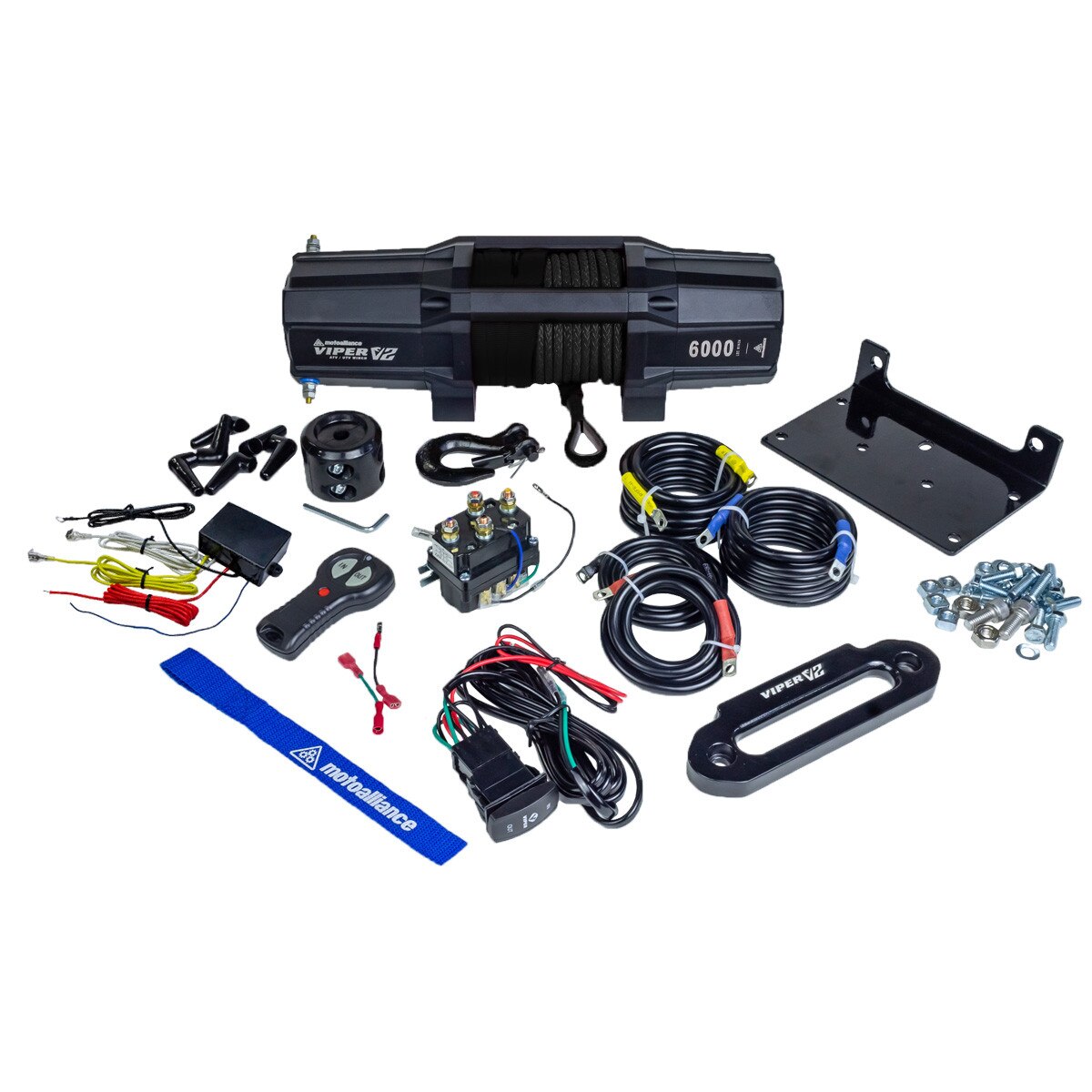

Kit Contents:

• • 60′ x ¼″ diameter AmSteel®-Blue Synthetic Cable (1 year warranty)
• • Aluminum Hawse Fairlead
• • Wireless Remote Switch
• • Flush Mount Dash Switch
• • Contactor & Wiring
• • Black Clevis Hook
• • Rubber Line Stopper (two-piece)
• • Hand Saver Strap
• • Installation Hardware and Instructions

Specs

• • Cable – AmSteel®-Blue Synthetic, 8,600lb max load rating
• • Motor – 12V DC, Sealed permanent magnet
• • Gearing / Gear Ratio – 3-Stage planetary/136:1
• • Brake – Automatic, 100% load holding
• • Clutch – Sliding Ring Gear
• • Wiring – 6 gauge (English)
• • Tie Rod, Fairlead Hardware, Motor Terminals – Stainless Steel
• • Mounting Bolt Pattern – 3.0 inch x 6.67 inch (76mm x 169.42mm)
• • Dimensions:
• •16.25 (L) x 4.75 (H) x 4.75 (D) inches
• •20.8 lbs

Note: the Universal fairlead mount plate included will only mount to a flat surface or to a “winch ready” UTV / SxS. We have many custom mount plates designed to bolt onto your UTV / SxS.

Use FACEBOOK10 at www.motoalliance.com to pick up your VIPER V2 at 10% off (or anything else from the HQ of DENALI plows, FIRESTORM heaters, VIPER winches, and moreV2….the next generation of VIPER winches, going strong since 2005.
